Length Grader
KEY FEATURES:
- The machine is equipped with sampling ports at the outlets to monitor the degree of separation
- Percentage of broken separation is adjustable
- Rigid fabricated body for smooth operation
- The machine is specifically designed to suit Basmati Rice, Raw Rice, Steam Rice, Parboiled Rice, and Boiled Rice.

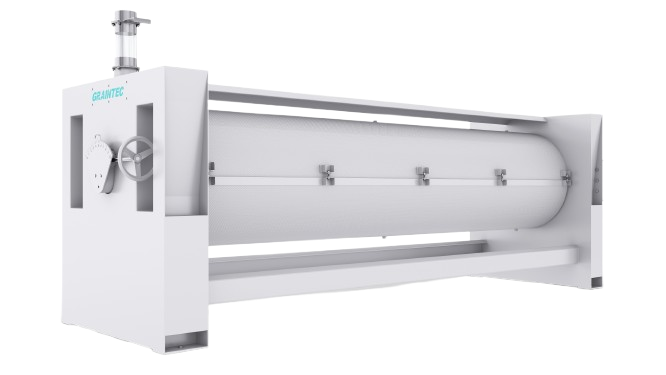

Graintec Length Grader
Length grader has rotating indented cylinder to separate broken or shorter grain from whole grain by length.
The full-grain length remains at the bottom of the cylinder and travels to a separate discharge outlet.
Technical Specifications
| Specification | LGRD – 1D | LGRD – 2D |
|---|---|---|
| CAPACITY (TPH) | 1 | 2 – 4 |
| MOTOR POWER – HP / kW | 2 / 1.5 – 1 NO | 2 / 1.5 – 2 NOS |
| MOTOR SPEED – POLE / RPM | 4 / 1440 | 4 / 1440 |
| VOLTAGE (V) / FREQUENCY (Hz) | 415 / 50 | 415 / 50 |
| MACHINE WEIGHT (Kg) | 680 | 1620 |
| SIZE (mm) A | 4235 | 3657 |
| SIZE (mm) B | 1070 | 1246 |
| SIZE (mm) C | 1280 | 2285 |
Key Benefits:
- The cylinder punched with imported CNC machine ensures higher efficiency of segregation based on the length
- Inbuilt self-cleaning mechanism ensures higher efficiency & smooth operations
- Tear drop shaped indents for higher accuracy of separation
- Direct-coupled geared motors are used for less maintenance, instead of belt or chain drive system
