THICK & THIN GRADER
KEY FEATURES:
- The changeover of one size of screen to another
can be done quickly and easily by a single operator. - The screens are selectable from a wide range of
available slot sizes. - This can also be used to separate immature grains, broken etc.

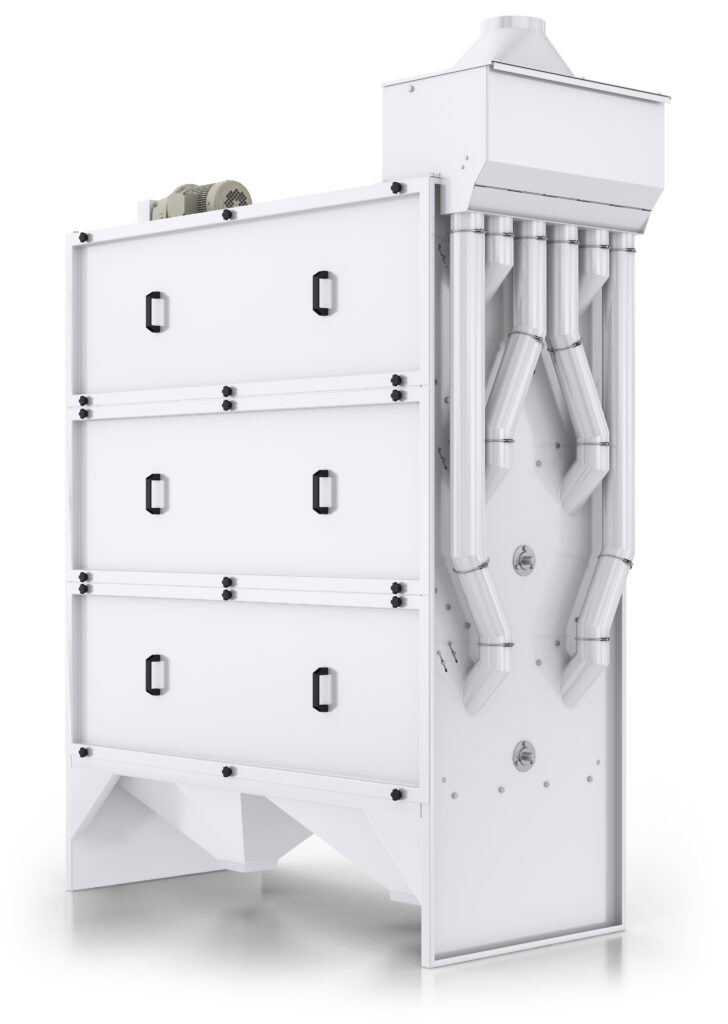

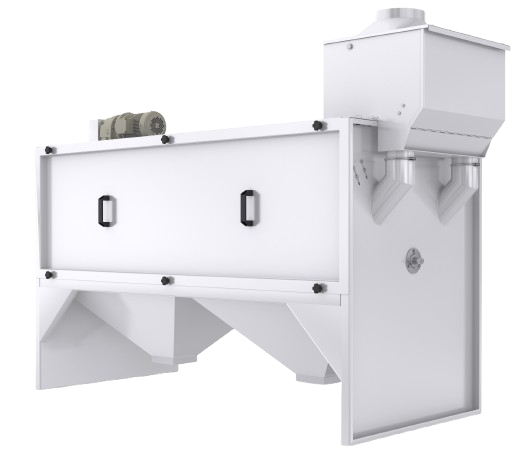

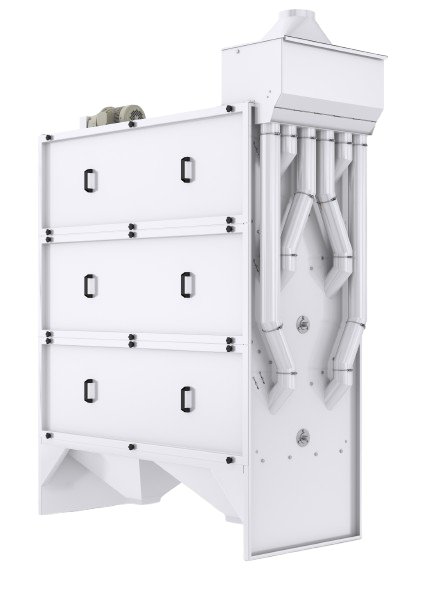

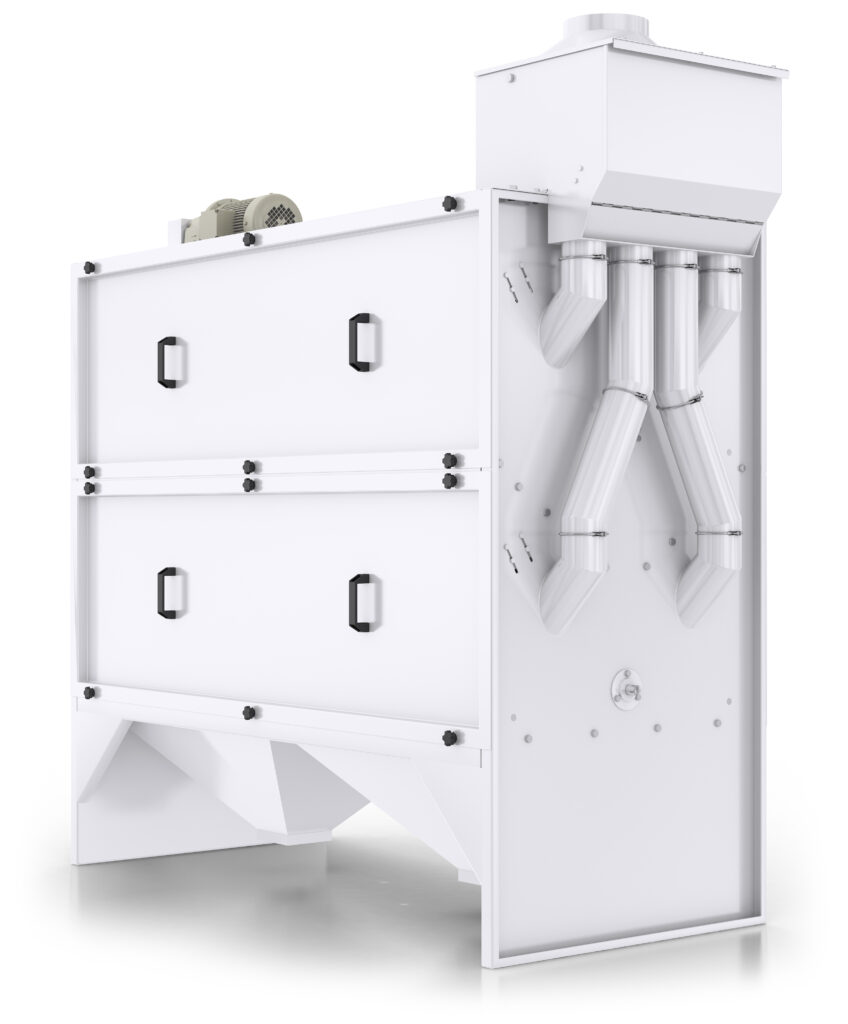

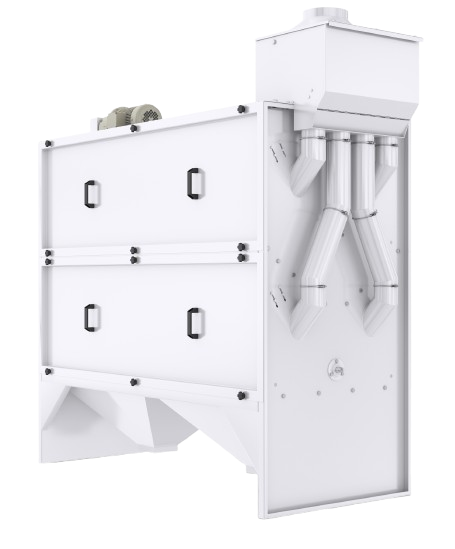

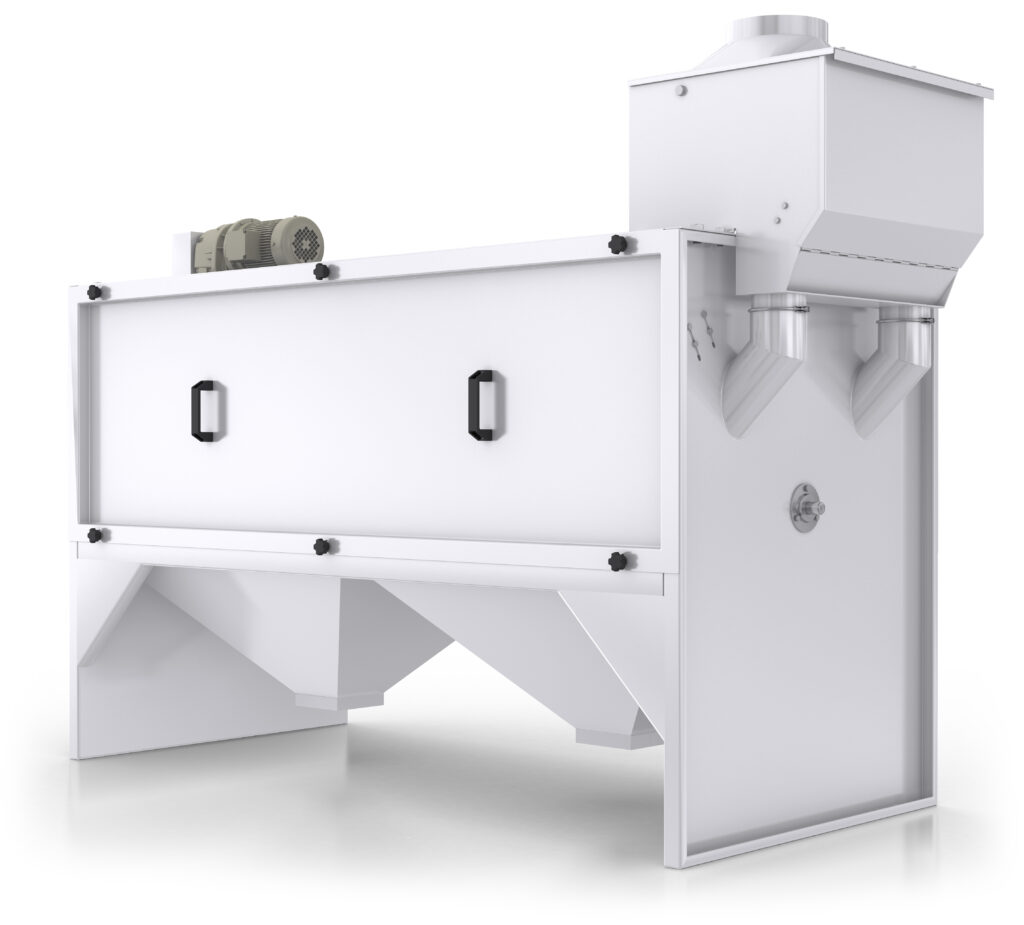

Graintec Thick & Thin Grader
Graintec thick & thin grader machine is used to separate different thickness grains in brown rice/ polished
rice.
The material is passed through revolving cylindrical screens that separate mixture of oversized & under sized
grains.
Technical Specifications
| Specification | TGRD – 2D | TGRD – 4D | TGRD – 6D |
|---|---|---|---|
| CAPACITY (TPH) | 3 – 4 | 5 – 6 | 8 |
| MOTOR – HP / kW | 1 / 0.75 | 2 / 1.5 | 2 / 1.5 |
| MOTOR POLE / OUTPUT RPM | 4 / 68 | 4 / 68 | 4 / 68 |
| VOLTAGE (V) / FREQUENCY (Hz) | 415 / 50 | 415 / 50 | 415 / 50 |
| MACHINE WEIGHT (Kg) | 370 | 610 | 975 |
| SIZE (mm) A | 2178 | 2178 | 2178 |
| SIZE (mm) B | 870 | 870 | 870 |
| SIZE (mm) C | 1570 | 2252 | 2867 |
Key Benefits:
- Highly efficient for separating admixture of over size or under size grains.
- An integrated cleaning brushes that rotates with the drum to avoid choking of slots.
- Highly efficient through accurate grading.
