Paddy Pre-cleaner
HIGHLIGHTS
- Fitted with round scalperator to remove sticks & straws
- GI coated sieves which enhance to increase screen life and avoid corrosion

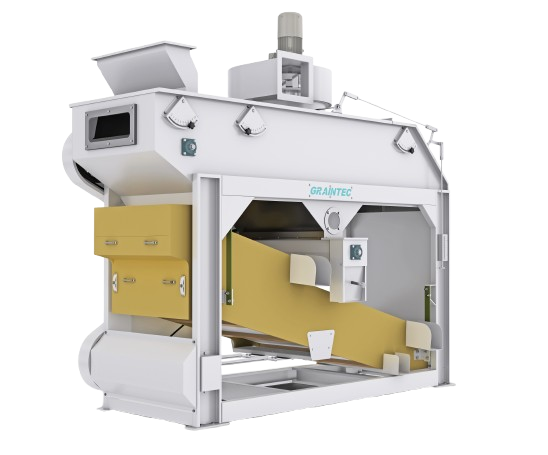

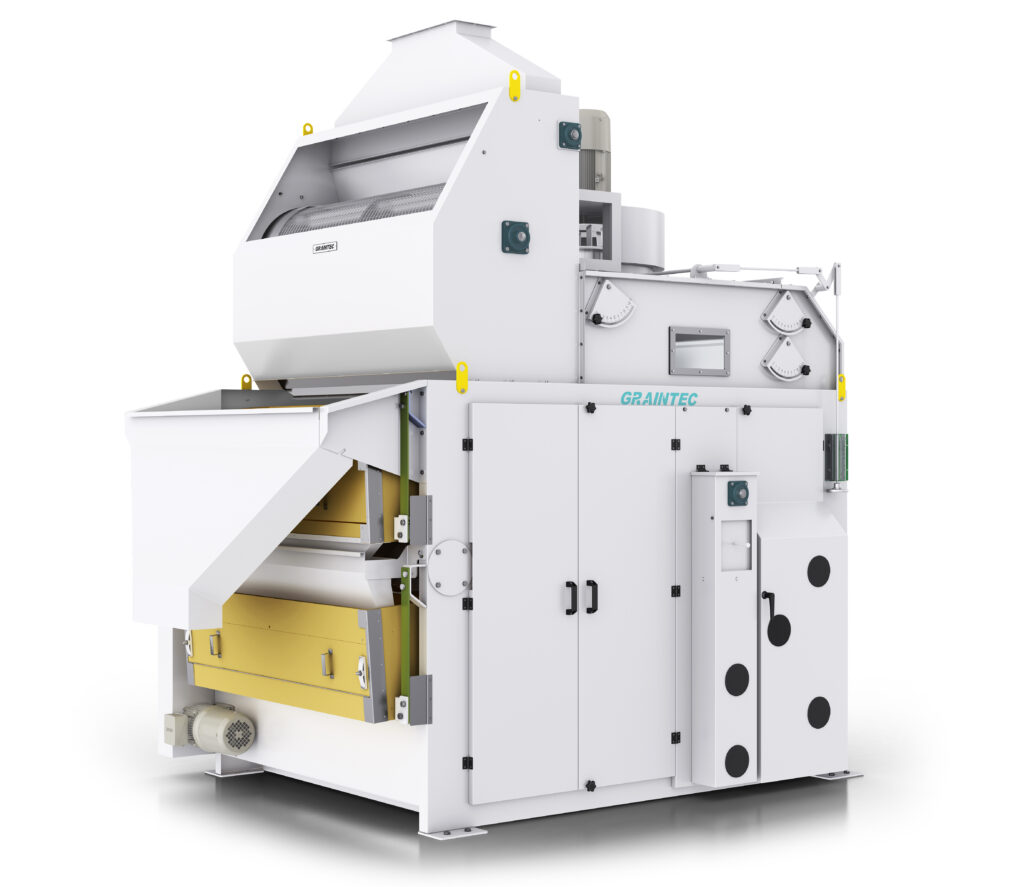

Graintec Paddy Pre-Cleaner
Graintec paddy pre-cleaner machine intend to remove foreign particles such as Sticks, straws, immature grains, fine dust and sand at intake point.
The machine is constructed of steel with sieve boat made of laminated wood.
Key Features:
- Equipped with inbuild suction blower for multiple aspiration
- Completely closed and dust proof construction
- Heavy structure resulting in rigidity and longer life.
- Sieve box is equipped with rubber balls for self-cleaning
Specifications
| Specification | PCLR-80-1D | PCLR-100-2D | PCLR-150-1D | PCLR-150-2D | PCLR-150-3D |
|---|---|---|---|---|---|
| Capacity – TPH on Paddy | 8 – 10 | 12 – 15 | 15 – 20 | 20 – 30 | 30 – 40 |
| Capacity – TPH on Wheat | 10 – 15 | 15 – 20 | 20 – 25 | 25 – 30 | 40 – 50 |
| Motor, Sieve Boat – HP | 1.5 | 2 | 2 | 3 | 5 |
| Fan Motor – HP | 5 | 7.5 | 7.5 | 10 | 15 |
| Machine Weight (Kg) | 950 | 1100 | 1450 | 1950 | 2250 |
| Size (mm) A | 3120 | 3120 | 3120 | 3120 | 3120 |
| Size (mm) B | 1330 | 1530 | 2030 | 2030 | 2030 |
| Size (mm) C | 2880 | 3385 | 2980 | 3385 | 3835 |
